MS7632M

Single Video Amplifier And Video Coaxial Control Decoder

MS7632M Features

* a low-power shutdown pin that is activated by driving SP low. The MS7632M has lead MSOP-8 package, and ESD (HBM) reaches 2KV. FEATURES

* Sixth-order 72MHz (HD) Filter

* Transparent input clamping

* 6dB output driver Gain and drive dual video load

* Rail-to-Rail Output

* Input Vo

MS7632M General Description

The MS7632M integrated Single video amplifier and video coaxial control decoder. The video amplifiers integrated Single 6dB Gain rail-to-rail output driver and 3rd output reconstruction filter, it has 72MHz -3dB bandwidth and 300V/µs slew rate. The video coaxial control decoder integrated a high-spe.

MS7632M Datasheet (223.29 KB)

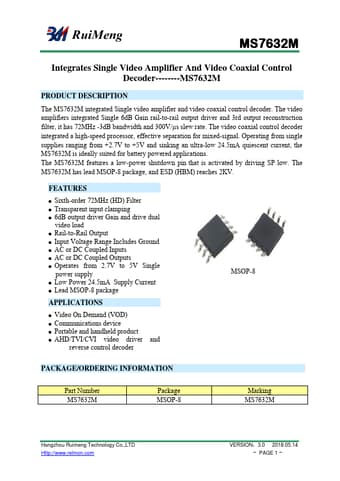

MS7632M Datasheet Preview — Preview of MS7632M PDF

Datasheet Details

Part number:

MS7632M

Manufacturer:

Ruimeng

File Size:

223.29 KB

Description:

Single video amplifier and video coaxial control decoder.
