MS761 - PRESSURE SENSOR DIE

MS761 Description

MS761 PRESSURE SENSOR DIE (0-1 BAR) * 0 to 100 kPa bar range (1 bar or 14.5 PSI) * High Sensitivity * ROHS-Compatible & Pb-fr.
The sensor element of the MS761A consists of a silicon micro-machined membrane with a Pyrex glass mounted under vacuum.

MS761 Features

* Uncompensated pressure sensor die
* High Sensitivity: Output Span 240 mV @ 5V
* Temperature Range -40°C …+ 125°C
* Linearity 0.15 % (typical)
* Small Die Size 2.00 X 1.86 mm

MS761 Applications

* for any devices shown in this data sheet are for illustration only and Intersema makes no claim or warranty that such applications will be suitable for the use specified without further testing or modification. DA761_002.doc 00000761348 ENC922 May 9, 2007 4/4

📥 Download Datasheet

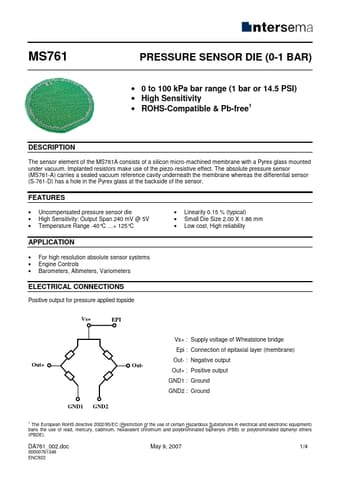

Preview of MS761 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MS761
Manufacturer
Intersema
File Size
240.19 KB
Datasheet
MS761-Intersema.pdf
Description
PRESSURE SENSOR DIE
