MD1238X DC Fan

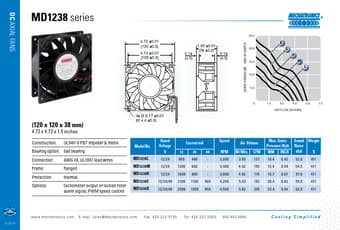

DC AXIAL FANS MD1238 series STATIC PRESSURE - MM OF WATER 4.72 ±0.01 (120 ±0.3) 4.13 ±0.01 (105 ±0.3) 0.18 (4.5) 1.50 ±0.01 (38 ±0.2) 0.18 (4.5) 25.0 20.0 15.0 10.0 5.0 X E H M L (120 x 120 x 38 mm) 4.72 x 4.72 x 1.5 inches 4x Ø 0.17 ±0.01 (Ø 4.4 ±0.3) Construction: UL94V-0 PBT impeller & frame Bearing option: ball bearing Connection: AWG 24, UL1007 lead wires Frame: flanged Protection: thermal Options: tachometer output or locked rotor alarm signal; PWM speed control Model N.

MD1238L-mechatronics.pdf

MD1238X Datasheet Preview — This datasheet PDF includes multiple part numbers: MD1238X, MD1238L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MD1238X, MD1238L

Manufacturer:

Mechatronics

File Size:

191.62 KB

Description:

Dc fan.

Note:

This datasheet PDF includes multiple part numbers: MD1238X, MD1238L.
Please refer to the document for exact specifications by model.
