MLX90247C

Thermopile w/NTC Thermistor

Melexis

MLX90247C Features

* Solid state sensor High reliability Low cost, small size On chip temperature sensor Applications Non-Contact Temperature Sensing Differential Temperature Sensing Climate Control Ear, Temple Thermometers Household and Commercial Appliances Ordering Information Part No. MLX90247C Description Thermop

MLX90247C General Description

Thermopile with 100K NTC Thermistor Functional Diagram Description The MLX90247C is a thermopile sensor IC which detects very small amounts of heat radiation. The sensor consists of a membrane with a thermopile on top of it. The hot junctions of the thermopile are positioned near the center of the.

MLX90247C Datasheet (82.66 KB)

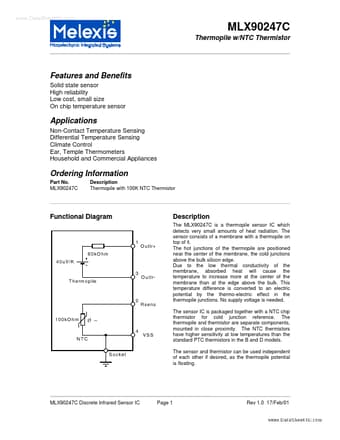

MLX90247C Datasheet Preview — Preview of MLX90247C PDF

Datasheet Details

Part number:

MLX90247C

Manufacturer:

Melexis

File Size:

82.66 KB

Description:

Thermopile w/ntc thermistor.
