MLX90614

Single and Dual Zone Infra Red Thermometer

MLX90614 Features

* Small size, low cost Easy to integrate Factory calibrated in wide temperature range: -40°C…+125˚C for sensor temperature and -70°C…+380˚C for object temperature. High accuracy of 0.5°C in a wide temperature range (0°C…+50°C for both Ta and To) High (medical) accuracy calibration Measurement resoluti

MLX90614 General Description

The MLX90614 is an Infra Red thermometer for noncontact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASSP are integrated in the same TO-39 can. Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, a high accuracy and resolution .

MLX90614 Datasheet (2.73 MB)

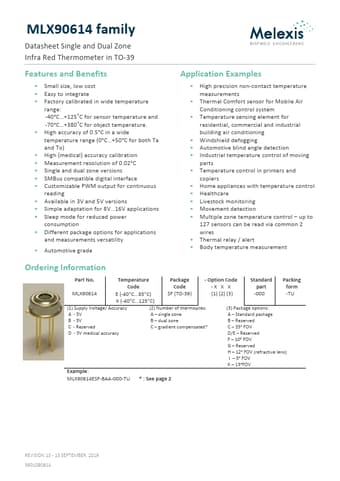

Preview of MLX90614 PDF

Datasheet Details

Part number:

MLX90614

Manufacturer:

Melexis

File Size:

2.73 MB

Description:

Single and dual zone infra red thermometer.
