KSZ8862-32MQL - 2-Port Ethernet Switch

This page provides the datasheet information for the KSZ8862-32MQL, a member of the KSZ8862-16MQL 2-Port Ethernet Switch family.

Datasheet Summary

Description

The KSZ8862M is 2-port switch with non-PCI CPU interface and fiber support, and is available in 8/16-bit and 32-bit bus designs (see Ordering Information).

This datasheet describes the KSZ8862M non-PCI CPU interface chip.

Features

Switch Management.
Non-blocking switch fabric assures fast packet delivery by utilizing a 1K entry forwarding table and a store-and-forward architecture.
Fully compliant with IEEE 802.3u standards.
Full-duplex IEEE 802.3x flow control (Pause) with force mode option.
Half-duplex back pressure flow control Advanced Switch Management.
IEEE 802.1Q VLAN support for up to 16 groups (full range of VLAN IDs).
VLAN ID tag/untag options, on a per port.

Datasheet Details

Part number	KSZ8862-32MQL
Manufacturer	Micrel Semiconductor
File Size	952.57 KB
Description	2-Port Ethernet Switch
Datasheet	KSZ8862-32MQL Datasheet
Additional preview pages of the KSZ8862-32MQL datasheet.

📁 Similar Datasheet

KSZ8862-32M - Two-Port Ethernet Switch (Microchip)

KSZ8862-16M - Two-Port Ethernet Switch (Microchip)

KSZ8863FLL - Integrated 3-Port 10/100 Managed Switch (Microchip)

KSZ8863MLL - Integrated 3-Port 10/100 Managed Switch (Microchip)

KSZ8863RLL - Integrated 3-Port 10/100 Managed Switch (Microchip)

KSZ8864CNX - Integrated 4-Port 10/100 Managed Switch (Microchip)

KSZ8864RMNUB - Integrated 4-Port 10/100 Managed Switch (Microchip)

KSZ8842-16M - Two-Port Ethernet Switch (Microchip)

KSZ8842-32M - Two-Port Ethernet Switch (Microchip)

KSZ8842-PMBL - Two-Port Ethernet Switch (Microchip)

Full PDF Text Transcription

Click to expand full text

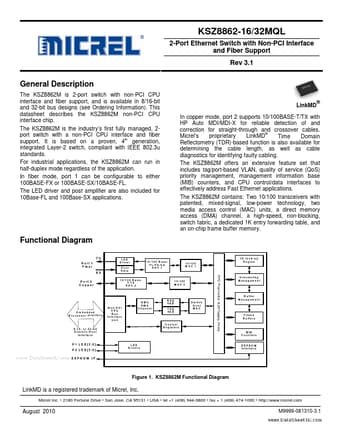

KSZ8862-16/32MQL 2-Port Ethernet Switch with Non-PCI Interface and Fiber Support Rev 3.1 General Description The KSZ8862M is 2-port switch with non-PCI CPU interface and fiber support, and is available in 8/16-bit and 32-bit bus designs (see Ordering Information). This datasheet describes the KSZ8862M non-PCI CPU interface chip. The KSZ8862M is the industry’s first fully managed, 2port switch with a non-PCI CPU interface and fiber th support. It is based on a proven, 4 generation, integrated Layer-2 switch, compliant with IEEE 802.3u standards. For industrial applications, the KSZ8862M can run in half-duplex mode regardless of the application. In fiber mode, port 1 can be configurable to either 100BASE-FX or 100BASE-SX/10BASE-FL.

Published: Apr 28, 2011 |
