MIC23150 Datasheet, Regulator, Micrel Semiconductor

MIC23150 Features

  • Regulator
  • Input voltage: 2.7V to 5.5V
  • 2A output current
  • Up to 93% peak efficiency
  • 87% typical efficiency at 1mA
  • 23µA typical quiescent current

PDF File Details

Part number:

MIC23150

Manufacturer:

Micrel Semiconductor

File Size:

1.91MB

Download:

📄 Datasheet

Description:

4mhz pwm 2a buck regulator. The MIC23150 is a high-efficiency 4MHz 2A synchronous buck regulator with HyperLight Load® mode. HyperLight Load provides very high e

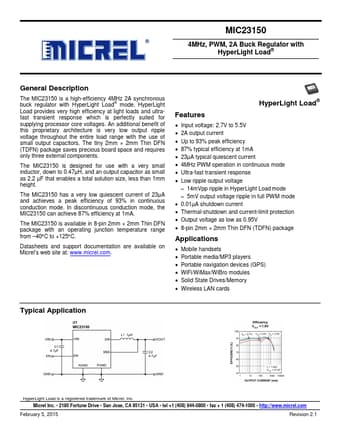

Datasheet Preview: MIC23150 📥 Download PDF (1.91MB)
Page 2 of MIC23150 Page 3 of MIC23150

MIC23150 Application

  • Applications
  • Mobile handsets
  • Portable media/MP3 players
  • Portable navigation devices (GPS)
  • WiFi/WiMax/WiBro m
