MIC2003

Fixed and Adjustable Current Limiting Power Distribution Switches

MIC2003 Features

* MIC20X3 - MIC20X9 - 70 mΩ Typical On-Resistance @ 5V MIC2005A/20X9A - 170 mΩ Typical On-Resistance @ 5V

* Enable Active-High or Active-Low

* 2.5V to 5.5V Operating Range

* Pre-Set Current Limit Values of 0.5A, 0.8A, and 1.2A

* Adjustable Current Limit 0.2A to 2.0

MIC2003 General Description

The MIC20XX family of switches are current limiting, high-side power switches, designed for general purpose power distribution and control in digital televisions (DTV), printers, set top boxes (STB), PCs, PDAs, and other peripheral devices (see MIC20XX Family Package Types and the MIC20XX Family Mem.

MIC2003 Datasheet (3.83 MB)

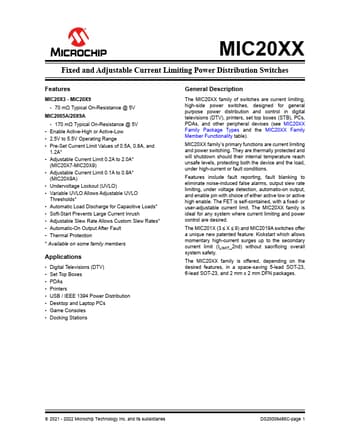

Preview of MIC2003 PDF
