MIC4104 - 100V Half Bridge MOSFET Drivers 3/2A Sinking/Sourcing Current

Product Overview

Micrel Semiconductor

Datasheet Details

Part number	MIC4104
Manufacturer	Micrel Semiconductor
File Size	630.85 KB
Description	100V Half Bridge MOSFET Drivers 3/2A Sinking/Sourcing Current
Datasheet	MIC4104 Datasheet
Note	This datasheet PDF includes multiple part numbers: MIC4104, MIC4103. Please refer to the document for exact specifications by model.

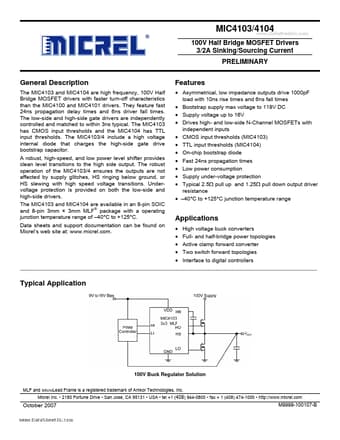

Additional preview pages of the MIC4104 datasheet.

Product details

Description

The MIC4103 and MIC4104 are high frequency, 100V Half Bridge MOSFET drivers with faster turn-off characteristics than the MIC4100 and MIC4101 drivers.

Features

Asymmetrical, low impedance outputs drive 1000pF load with 10ns rise times and 6ns fall times.
Bootstrap supply max voltage to 118V DC.
Supply voltage up to 16V.
Drives high- and low-side N-Channel MOSFETs with independent inputs.
CMOS input thresholds (MIC4103).
TTL input thresholds (MIC4104).
On-chip bootstrap diode.
Fast 24ns propagation times.
Low power consumption.
Supply under-voltage protection.
