MIC5013

Protected High- or Low-Side MOSFET Driver

MIC5013 Features

* 7V to 32V operation Less than 1µA standby current in the “OFF” state Available in small outline SOIC packages Internal charge pump to drive the gate of an N-channel power FET above supply Internal zen

MIC5013 General Description

The MIC5013 is an 8-pin MOSFET driver with over-current shutdown and a fault flag. It is designed to drive the gate of an N-channel power MOSFET above the supply rail high-side power switch applications. The MIC5013 is compatible with standard or current-sensing power MOSFETs in both highand low-sid.

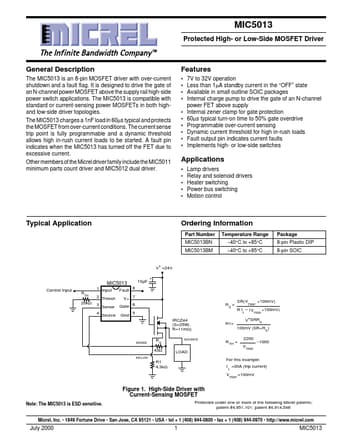

MIC5013 Datasheet (153.36 KB)

Preview of MIC5013 PDF

Datasheet Details

Part number:

MIC5013

Manufacturer:

Micrel Semiconductor

File Size:

153.36 KB

Description:

Protected high- or low-side mosfet driver.
