MIC5200 - 100mA Low-Dropout Regulator

Datasheet Summary

Description

The MIC5200 is an efficient linear voltage regulator with very low dropout voltage (typically 17 mV at light loads and 200 mV at 100 mA), and very low ground current (1 mA at 100 mA output), offering better than 1% initial accuracy with a logic-compatible ON/OFF switching input.

Features

High Output Voltage Accuracy.
Variety of Output Voltages.
Guaranteed 100 mA Output.
Low Quiescent Current.
Low Dropout Voltage.
Extremely Tight Load and Line Regulation.
Very Low Temperature Coefficient.
Current and Thermal Limiting.
Zero OFF Mode Current.
Logic-Controlled Electronic Shutdown.
Available in 8-Lead SOIC, MM8 8-Lead MSOP, and SOT-223 Packages.

Datasheet Details

Part number	MIC5200
Manufacturer	Microchip
File Size	291.36 KB
Description	100mA Low-Dropout Regulator
Datasheet	MIC5200 Datasheet

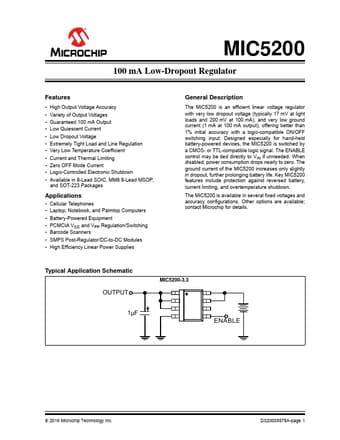

Additional preview pages of the MIC5200 datasheet.
