MIC5205 - 150mA Low-Noise LDO Regulator

Datasheet Summary

Description

The MIC5205 is an efficient linear voltage regulator with ultralow-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (600µA at 100mA output).

The MIC5205 offers better than 1% initial accuracy.

Features

  • include a reference bypass pin to improve its already excellent low-noise performance, reversed-battery protection, current limiting, and overtemperature shutdown. The MIC5205 is available in fixed and adjustable output voltage versions in a small SOT-23-5 package. Features.
  • Ultra-low-noise output High output voltage a.

📥 Download Datasheet

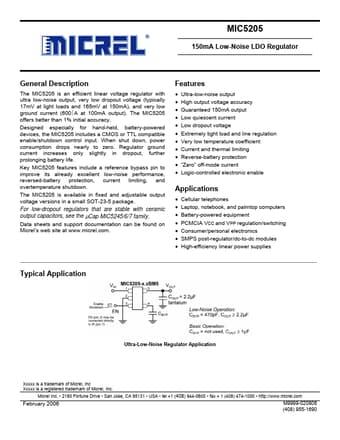

Datasheet preview – MIC5205

Datasheet Details

Part number MIC5205
Manufacturer Micrel Semiconductor
File Size 762.42 KB
Description 150mA Low-Noise LDO Regulator
Datasheet download datasheet MIC5205 Datasheet
Additional preview pages of the MIC5205 datasheet.
