MIC5203

uCap 80mA Low-Dropout Voltage Regulator

MIC5203 Features

* include current limiting, overtemperature shutdown, and protection against reversed battery. The MIC5203 is available in 2.8V, 3.0V, 3.3V, 3.6V, 3.8V, 4.0V, 4.5V, 4.75V, and 5.0V fixed voltages. Other voltages are available; contact Micrel for details. Features

MIC5203 General Description

The MIC5203 is a µCap™ 80mA linear voltage regulator with very low dropout voltage (typically 20mV at light loads and 300mV at 80mA) and very low ground current (225µA at 20mA output), offering better than 3% initial accuracy with a logic-compatible enable input. The µCap™ regulator design is optimi.

MIC5203 Datasheet (218.37 KB)

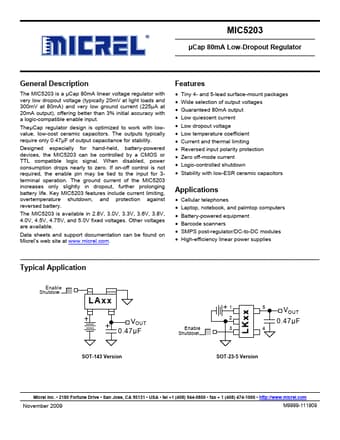

Preview of MIC5203 PDF

Datasheet Details

Part number:

MIC5203

Manufacturer:

Micrel Semiconductor

File Size:

218.37 KB

Description:

Ucap 80ma low-dropout voltage regulator.
