MIC5156 - Super LDO Regulator Controller

Datasheet Summary

Description

The MIC5156, MIC5157, and MIC5158 Super Low-Dropout (LDO) Regulator Controllers are single IC solutions for highcurrent low-dropout linear voltage regulation.

Super LDO™ Regulators have the advantages of an external N-channel power MOSFET as the linear pass element.

Features

  • a dropout voltage as low as the RDS(ON) of the external power MOSFET multiplied by the output current. The output current can be as high as the largest MOSFETs can provide. The MIC5156/7/8 family operates from 3V to 36V. The MIC5156 requires an external gate drive supply to provide the higher voltage needed to drive the gate of the external MOSFET. The MIC5157 and MIC5158 each have an internal charge pump tripler to produce the gate drive voltage. The tripler is capable of providing enough volta.

📥 Download Datasheet

Datasheet preview – MIC5156

Datasheet Details

Part number MIC5156
Manufacturer Micrel Semiconductor
File Size 268.78 KB
Description Super LDO Regulator Controller
Datasheet download datasheet MIC5156 Datasheet
Additional preview pages of the MIC5156 datasheet.

📁 Similar Datasheet

  • MIC5166 - DDR Terminator (Microchip)
  • MIC5060 - Ultra Small High-Side MOSFET Driver (Micrel)
  • MIC5200 - 100mA Low-Dropout Regulator (Microchip)
  • MIC5202 - Dual 100mA Low-Dropout Regulator (Microchip)
  • MIC5205 - 150mA Low-Noise LDO Regulator (Microchip)
  • MIC5210 - Dual 150mA LDO Regulator (Microchip)
  • MIC5211 - Dual uCap 80mA LDO Regulator (Microchip)
  • MIC5232 - 10mA Ultra-Low Quiescent Current uCap LDO (Microchip)
  • MIC5236 - Low Quiescent Current uCap LDO Regulator (Microchip)
  • MIC5239 - Low Quiescent Current 500mA uCap LDO Regulator (Microchip)
Other Datasheets by Micrel Semiconductor
  • MIC5157 - Super LDO Regulator Controller
  • MIC5158 - Super LDO Regulator Controller
  • MIC5159 - PROGRAMMABLE CURRENT LIMIT UCAP LDO REGULATOR CONTROLLER
  • MIC5162 - Dual Regulator Controller
  • MIC5163 - Dual Regulator Controller
  • MIC5164 - Dual Regulator Controller
  • MIC5165 - Dual Regulator Controller
  • MIC5166 - 3A High-Speed Low V DDR Terminator

Full PDF Text Transcription

Click to expand full text

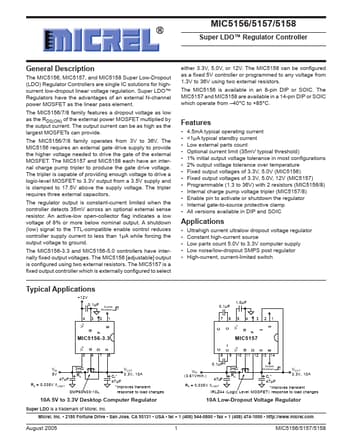

MIC5156/5157/5158 Micrel, Inc. MIC5156/5157/5158 Super LDO™ Regulator Controller General Description The MIC5156, MIC5157, and MIC5158 Super Low-Dropout (LDO) Regulator Controllers are single IC solutions for highcurrent low-dropout linear voltage regulation. Super LDO™ Regulators have the advantages of an external N-channel power MOSFET as the linear pass element. The MIC5156/7/8 family features a dropout voltage as low as the RDS(ON) of the external power MOSFET multiplied by the output current. The output current can be as high as the largest MOSFETs can provide. The MIC5156/7/8 family operates from 3V to 36V. The MIC5156 requires an external gate drive supply to provide the higher voltage needed to drive the gate of the external MOSFET.
