MIC5164 - Dual Regulator Controller

Datasheet Summary

Description

The MIC5164 is a dual regulator controller designed for high speed bus termination.

It offers a simple, low-cost JEDEC-compliant solution for terminating high-speed, lowvoltage digital buses (i.e.

Features

  • Input voltage range: 1.35V to 6V Up to 7A VTT Current Tracking programmable output Power Good (PG) signal Wide bandwidth Logic controlled enable input Requires minimal external components DDR, DDR2, DDR3, memory termination.
  • 40°C < TJ < +125°C JEDEC-compliant bus termination for SCSI, GTL, SSTL, HSTL, LV-TTL, Rambus, LV-PECL, LV-ECL, etc.
  • Tiny MSOP-10 package.

📥 Download Datasheet

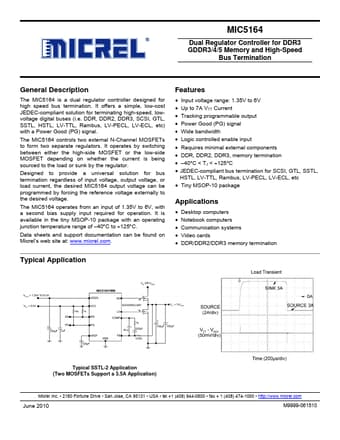

Datasheet preview – MIC5164

Datasheet Details

Part number MIC5164
Manufacturer Micrel Semiconductor
File Size 1.02 MB
Description Dual Regulator Controller
Datasheet download datasheet MIC5164 Datasheet
Additional preview pages of the MIC5164 datasheet.

📁 Similar Datasheet

  • MIC5166 - DDR Terminator (Microchip)
  • MIC5060 - Ultra Small High-Side MOSFET Driver (Micrel)
  • MIC5200 - 100mA Low-Dropout Regulator (Microchip)
  • MIC5202 - Dual 100mA Low-Dropout Regulator (Microchip)
  • MIC5205 - 150mA Low-Noise LDO Regulator (Microchip)
  • MIC5210 - Dual 150mA LDO Regulator (Microchip)
  • MIC5211 - Dual uCap 80mA LDO Regulator (Microchip)
  • MIC5232 - 10mA Ultra-Low Quiescent Current uCap LDO (Microchip)
  • MIC5236 - Low Quiescent Current uCap LDO Regulator (Microchip)
  • MIC5239 - Low Quiescent Current 500mA uCap LDO Regulator (Microchip)
Other Datasheets by Micrel Semiconductor
  • MIC5162 - Dual Regulator Controller
  • MIC5163 - Dual Regulator Controller
  • MIC5165 - Dual Regulator Controller
  • MIC5166 - 3A High-Speed Low V DDR Terminator
  • MIC5167 - Synchronous Buck DDR Memory Terminator
  • MIC5156 - Super LDO Regulator Controller
  • MIC5157 - Super LDO Regulator Controller
  • MIC5158 - Super LDO Regulator Controller

Full PDF Text Transcription

Click to expand full text
MIC5164 Dual Regulator Controller for DDR3 GDDR3/4/5 Memory and High-Speed Bus Termination General Description The MIC5164 is a dual regulator controller designed for high speed bus termination. It offers a simple, low-cost JEDEC-compliant solution for terminating high-speed, lowvoltage digital buses (i.e. DDR, DDR2, DDR3, SCSI, GTL, SSTL, HSTL, LV-TTL, Rambus, LV-PECL, LV-ECL, etc) with a Power Good (PG) signal. The MIC5164 controls two external N-Channel MOSFETs to form two separate regulators. It operates by switching between either the high-side MOSFET or the low-side MOSFET depending on whether the current is being sourced to the load or sunk by the regulator.
