MIC5167 - Synchronous Buck DDR Memory Terminator

Datasheet Summary

Description

The MIC5167 is a high-efficiency, 6A, integrated switch, synchronous regulator designed for use as a double data rate (DDR) or quad data rate (QDR) terminator.

The MIC5167 is optimized for highest efficiency, achieving more than 94% efficiency while still switching at 1MHz over a broad range.

Features

  • Input voltage range: 2.6V to 5.5V VTT voltage adjustable down to 0.35V Output load current up to ±6A Power-Good (PG) fault flag Efficiency > 94% across a broad load range Ultra-fast transient response Easy RC compensation 100% maximum duty cycle Fully-integrated MOSFET switches Micropower shutdown Thermal-shutdown and current-limit protection 24-pin 4mm x 4mm MLF®.

📥 Download Datasheet

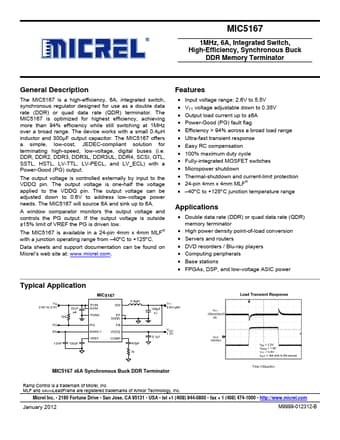

Datasheet preview – MIC5167

Datasheet Details

Part number MIC5167
Manufacturer Micrel Semiconductor
File Size 654.30 KB
Description Synchronous Buck DDR Memory Terminator
Datasheet download datasheet MIC5167 Datasheet
Additional preview pages of the MIC5167 datasheet.

📁 Similar Datasheet

  • MIC5166 - DDR Terminator (Microchip)
  • MIC5060 - Ultra Small High-Side MOSFET Driver (Micrel)
  • MIC5200 - 100mA Low-Dropout Regulator (Microchip)
  • MIC5202 - Dual 100mA Low-Dropout Regulator (Microchip)
  • MIC5205 - 150mA Low-Noise LDO Regulator (Microchip)
  • MIC5210 - Dual 150mA LDO Regulator (Microchip)
  • MIC5211 - Dual uCap 80mA LDO Regulator (Microchip)
  • MIC5232 - 10mA Ultra-Low Quiescent Current uCap LDO (Microchip)
  • MIC5236 - Low Quiescent Current uCap LDO Regulator (Microchip)
  • MIC5239 - Low Quiescent Current 500mA uCap LDO Regulator (Microchip)
Other Datasheets by Micrel Semiconductor
  • MIC5162 - Dual Regulator Controller
  • MIC5163 - Dual Regulator Controller
  • MIC5164 - Dual Regulator Controller
  • MIC5165 - Dual Regulator Controller
  • MIC5166 - 3A High-Speed Low V DDR Terminator
  • MIC5156 - Super LDO Regulator Controller
  • MIC5157 - Super LDO Regulator Controller
  • MIC5158 - Super LDO Regulator Controller

Full PDF Text Transcription

Click to expand full text
MIC5167 1MHz, 6A, Integrated Switch, High-Efficiency, Synchronous Buck DDR Memory Terminator General Description The MIC5167 is a high-efficiency, 6A, integrated switch, synchronous regulator designed for use as a double data rate (DDR) or quad data rate (QDR) terminator. The MIC5167 is optimized for highest efficiency, achieving more than 94% efficiency while still switching at 1MHz over a broad range. The device works with a small 0.4µH inductor and 300µF output capacitor. The MIC5167 offers a simple, low-cost, JEDEC-compliant solution for terminating high-speed, low-voltage, digital buses (i.e. DDR, DDR2, DDR3, DDR3L, DDR3UL, DDR4, SCSI, GTL, SSTL, HSTL, LV-TTL, LV-PECL, and LV_ECL) with a Power-Good (PG) output. The output voltage is controlled externally by input to the VDDQ pin.
