MIC5270

IttyBitty Negative Low-Dropout Regulator Preliminary Information

MIC5270 Features

* IttyBitty™ SOT-23-5 packaging Low dropout voltage Low ground current Tight initial accuracy Tight load and line regulation Thermal shutdown Current limiting Stable with low-ESR cer

MIC5270 General Description

The MIC5270 is a µCap 100mA negative regulator in a SOT23-5 package. With better than 2% initial accuracy, this regulator provides a very accurate supply voltage for applications that require a negative rail. The MIC5270 sinks 100mA of output current at very low dropout voltage (600mV maximum at 100.

MIC5270 Datasheet (42.04 KB)

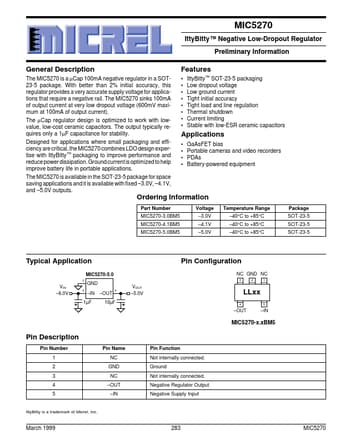

Preview of MIC5270 PDF

Datasheet Details

Part number:

MIC5270

Manufacturer:

Micrel Semiconductor

File Size:

42.04 KB

Description:

Ittybitty negative low-dropout regulator preliminary information.
