MIC864 - Dual 350kHz Rail-to-Rail Operational Amplifier

Micrel Semiconductor

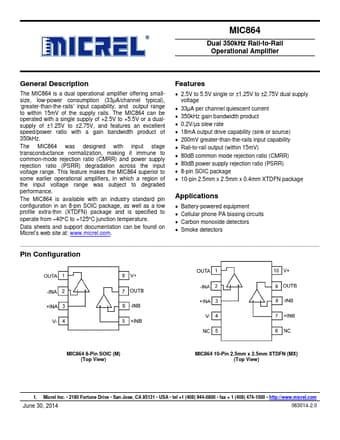

MIC864 Datasheet Preview — Preview of MIC864 PDF

Datasheet Details

Part number	MIC864
Manufacturer	Micrel Semiconductor
File Size	509.40 KB
Description	Dual 350kHz Rail-to-Rail Operational Amplifier
Datasheet	MIC864-MicrelSemiconductor.pdf

MIC864 Product details

Description

The MIC864 is a dual operational amplifier offering smallsize, low-power consumption (33µA/channel typical), ‘greater-than-the-rails’ input capability, and output range to within 15mV of the supply rails.

Features

an excellent speed/power ratio with a gain bandwidth product of 350kHz. The MIC864 was designed with input stage transconductance normalization, making it immune to common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR) degradation across the input voltage range. This feature makes the MIC864 superior to some earlier operational amplifiers, in which a region of the input voltage range was subject to degraded performance. The MIC864 is available with an industry standard pin c.
