MICRF211 Datasheet - Micrel Semiconductor

QwikRadio 433.92 MHz Receiver

MICRF211 Features

* 110 dBm sensitivity, 1kbps and BER 10E-02 Image Rejection Mixer Frequency from 380MHz to 450MHz Low power, 6.0mA @ 433.92MHz, continuous on data rates to 10kbps (Manchester Encoded) Analog RSSI Output No IF filt

MICRF211 General Description

The MICRF211 is a general purpose, 3V QwikRadio Receiver that operates at 433.92MHz with typical sensitivity of -110dBm. The MICRF211 functions as a super-heterodyne receiver for OOK and ASK modulation up to 10kbps. The down-conversion mixer also provides image rejection. All post-detection data fil.

MICRF211 Datasheet (1.19 MB)

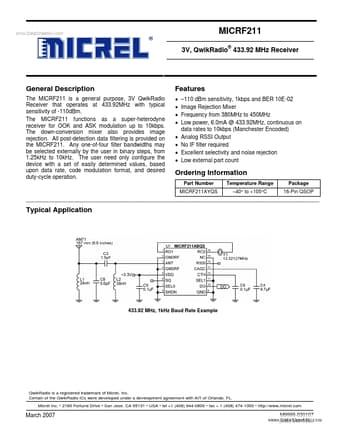

MICRF211 Datasheet Preview — Preview of MICRF211 PDF

Datasheet Details

Part number:

MICRF211

Manufacturer:

Micrel Semiconductor

File Size:

1.19 MB

Description:

Qwikradio 433.92 mhz receiver .
