MICRF220 - 3.3V ASK/OOK Receiver

Micrel Semiconductor

MICRF220 Description

MICRF220 300MHz to 450MHz, 3.3V ASK/OOK Receiver with RSSI and Squelch General .
The MICRF220 is a 300MHz to 450MHz superheterodyne, image-reject, RF receiver with automatic gain control, ASK/OOK demodulator, analog RSSI output, an.

MICRF220 Applications

* The MICRF220 achieves
* 110dBm sensitivity at a bit rate of 1kbps with 0.1% BER. Four demodulator filter bandwidths are selectable in binary steps from 1625Hz to 13kHz at 433.92MHz, allowing the device to support bit rates up to 20kbps. The device operates from a supply voltage of 3.0V to 3.

📥 Download Datasheet

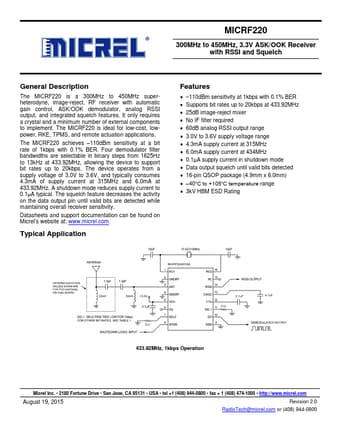

MICRF220 Datasheet Preview — Preview of MICRF220 PDF

Datasheet Details

Part number: MICRF220
Manufacturer: Micrel Semiconductor
File Size: 695.39 KB
Datasheet: MICRF220-MicrelSemiconductor.pdf
Description: 3.3V ASK/OOK Receiver
