MICRF213 - QwikRadio 315MHz Receiver

Datasheet Summary

Description

The MICRF213 is a general purpose, 3.3V QwikRadio Receiver that operates at 315MHz with typical sensitivity of -110dBm.

The MICRF213 functions as a super-heterodyne receiver for OOK and ASK modulation up to 7.2kbps.

The down-conversion mixer also provides image rejection.

Features

  • Up to.
  • 110dBm sensitivity, 1kbps and BER 10E-02 Image Rejection Mixer Frequency from 300MHz to 350MHz Low current consumption: 3.9mA @ 315MHz, continuous on data rates to 7.2kbps (Manchester Encoded) Analog RSSI Output No IF filter required Excellent selectivity and noise rejection Low external part count Ordering Information Part Number MICRF213AYQS Temperature Range.
  • 40° to +105°C Package 16-Pin QS.

📥 Download Datasheet

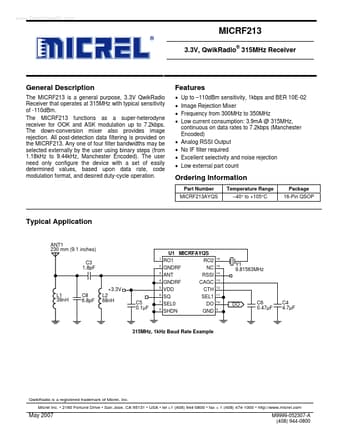

Datasheet preview – MICRF213

Datasheet Details

Part number MICRF213
Manufacturer Micrel Semiconductor
File Size 920.30 KB
Description QwikRadio 315MHz Receiver
Datasheet download datasheet MICRF213 Datasheet
Additional preview pages of the MICRF213 datasheet.

📁 Similar Datasheet

Other Datasheets by Micrel Semiconductor
  • MICRF211 - QwikRadio 433.92 MHz Receiver
  • MICRF218 - QwikRadio 300 MHz to 450 MHz Receiver
  • MICRF219 - 300MHz to 450MHz ASK Receiver
  • MICRF219A - 300MHz to 450MHz ASK/OOK Receiver
  • MICRF220 - 3.3V ASK/OOK Receiver
  • MICRF221 - 850 MHz to 950 MHz Receiver
  • MICRF229 - 400MHz to 450MHz ASK/OOK Receiver
  • MICRF230 - 400MHz to 450MHz ASK/OOK Receiver

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com MICRF213 3.3V, QwikRadio® 315MHz Receiver General Description The MICRF213 is a general purpose, 3.3V QwikRadio Receiver that operates at 315MHz with typical sensitivity of -110dBm. The MICRF213 functions as a super-heterodyne receiver for OOK and ASK modulation up to 7.2kbps. The down-conversion mixer also provides image rejection. All post-detection data filtering is provided on the MICRF213. Any one of four filter bandwidths may be selected externally by the user using binary steps (from 1.18kHz to 9.44kHz, Manchester Encoded). The user need only configure the device with a set of easily determined values, based upon data rate, code modulation format, and desired duty-cycle operation.
