MICRF229

400MHz to 450MHz ASK/OOK Receiver

Micrel Semiconductor

MICRF229 Features

* 112dBm sensitivity at 1kbps with 1% BER

* Auto-polling mode with bit checking

* Supports bit rates up to 20kbps at 433.92MHz

* 25dB image-reject mixer

* No IF filter required

* 60dB analog RSSI output range

* 3.5V to 5.5V supply voltage range

* 6.0mA supply current

MICRF229 General Description

The MICRF229 is a 400MHz to 450MHz superheterodyne, image-reject, RF receiver with automatic gain control, ASK/OOK demodulator, and analog RSSI output. It only requires a crystal and a minimum number of external components to implement. The MICRF229 is ideal for low-cost, low-power, RKE, TPMS, and r.

MICRF229 Datasheet (837.09 KB)

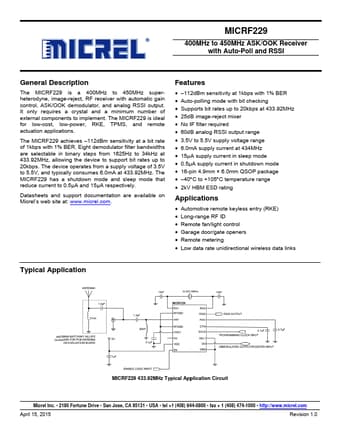

MICRF229 Datasheet Preview — Preview of MICRF229 PDF

Datasheet Details

Part number:

MICRF229

Manufacturer:

Micrel Semiconductor

File Size:

837.09 KB

Description:

400mhz to 450mhz ask/ook receiver.
