MX573BBA312M500 - Ultra-Low Jitter 312.5MHz LVPECL XO

Description

The MX573BBA312M500 is an ultra-low phase jitter XO with LVPECL output optimized for high line rate applications.

10/40/400 Gigabit Ethernet Fibre Channel 10G/12G SERDES

Features

  • 312.5MHz LVPECL.
  • Typical phase noise: - 108fs (Integration range: 1.875MHz-20MHz).
  • ±50ppm total frequency stability.
  • -40°C to +85°C temperature range.
  • Industry standard 6-Pin 7mm x 5mm LGA package Absolute Maximum Ratings Supply Voltage (VIN)+3.6V Lead Temperature (soldering, 10s)260°C Storage Temperature (TS)125°C ESD Rating (HBM)2kV Operating Ratings Supply Voltage (VIN)+2.375V to +3.63V Ambient Temperature (TA)-40°C to +85°C Electrical Characte.

📥 Download Datasheet

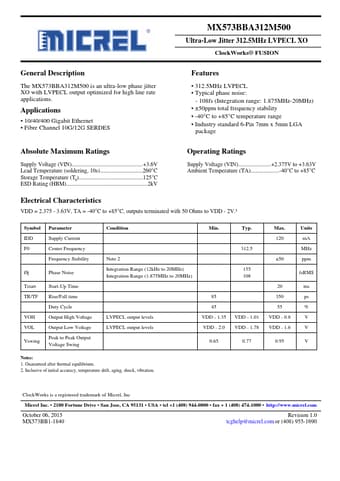

Datasheet preview – MX573BBA312M500

Datasheet Details

Part number MX573BBA312M500
Manufacturer Micrel Semiconductor
File Size 1.18 MB
Description Ultra-Low Jitter 312.5MHz LVPECL XO
Datasheet download datasheet MX573BBA312M500 Datasheet
Additional preview pages of the MX573BBA312M500 datasheet.

📁 Similar Datasheet

  • MX57 - Low Jitter Crystal Oscillator (Microchip)
  • MX574A - Complete 12-Bit ADCs (Maxim Integrated Products)
  • MX578 - High Speed 12 Bit A/D Converter (Maxim Integrated Products)
  • MX5012D - +12 Voltage Electronic Fuse (MAXINMICRO)
  • MX5014D22 - 4 to 40V Low-Cost High Side Gate Driver (MAXINMICRO)
  • MX5014S - 3 to 50V Low Cost High Side or Low Side Gate Driver (MAXINMICRO)
  • MX5015D22 - High-Side N_FET Driver (MAXINMICRO)
  • MX5050L - High-Side OR-ing FET Controller (MAXINMICRO)
  • MX5050T - High-Side OR-ing FET Controller (MAXINMICRO)
  • MX5052S - 3A High-Side OR-ing FET Circuit (MAXINMICRO)
Other Datasheets by Micrel Semiconductor

Full PDF Text Transcription

Click to expand full text
MX573BBA312M500 Ultra-Low Jitter 312.5MHz LVPECL XO ClockWorks® FUSION General Description The MX573BBA312M500 is an ultra-low phase jitter XO with LVPECL output optimized for high line rate applications. Applications • 10/40/400 Gigabit Ethernet • Fibre Channel 10G/12G SERDES Features • 312.5MHz LVPECL • Typical phase noise: - 108fs (Integration range: 1.875MHz-20MHz) • ±50ppm total frequency stability • -40°C to +85°C temperature range • Industry standard 6-Pin 7mm x 5mm LGA package Absolute Maximum Ratings Supply Voltage (VIN)..................................................+3.6V Lead Temperature (soldering, 10s)..............................260°C Storage Temperature (TS).............................................125°C ESD Rating (HBM)..............................................
