PL123-09, PL123-05 - Low Skew Zero Delay Buffer

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PL123-09, PL123-05. Please refer to the document for exact specifications by model.

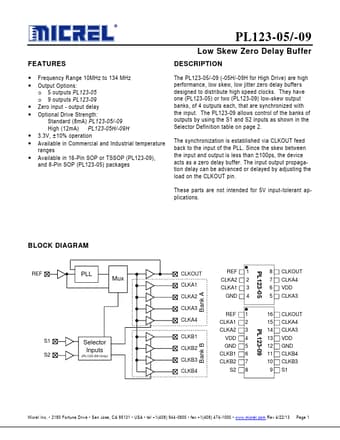

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number PL123-09, PL123-05
Manufacturer Micrel Semiconductor
File Size 341.63 KB
Description Low Skew Zero Delay Buffer
Datasheet download datasheet PL123-05-MicrelSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: PL123-09, PL123-05.
Please refer to the document for exact specifications by model.

PL123-09 Product details

Description

Frequency Range 10MHz to 134 MHz Output Options: o 5 outputs PL123-05 o 9 outputs PL123-09 Zero input - output delay Optional Drive Strength: Standard (8mA) PL123-05/-09 High (12mA) PL123-05H/-09H 3.3V, ±10% operation Available in Commercial and Industrial temperature ranges Available in 16-Pin SOP or TSSOP (PL123-09), and 8-Pin SOP (PL123-05) packages The PL123-05/-09 (-05H/-09H for High Drive) are high performance, low skew, low jitter zero delay buf

Features
