PL123-05N Datasheet - Micrel

PL123-05N - Low Skew Fanout Buffer

The PL123-05N and PL123-09N are a low-cost fanout buffers for distributing high-speed clocks with low output to output skew and preserving low noise properties.

The fanout buffers accept an input from DC to 134MHz and provide 5 or 9 outputs of the same frequency.

A typical PL123-09N application for

FE AT UR E S Output fanout buffer for DC to 134MHz Output Options: o 1:5 output fanout with PL123-05 o 1:9 output fanout with PL123-09 Low power consumption for portable applications Low input-output delay Output-Output skew less than 250ps Low Additive Phase Jitter of 60fs RMS 2.5V to 3.3V, ±10% operation 1.8V ±10% operation up to 67MHz Operating temperature range from -40°C to 85°C Available in 16-Pin SOP (PL123-09) and 8-Pin SOP (PL1

PL123-05N-Micrel.pdf

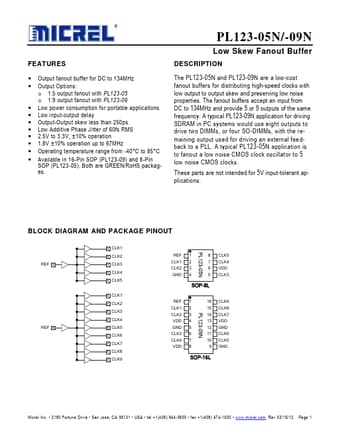

Preview of PL123-05N PDF
PL123-05N Datasheet Preview Page 2 PL123-05N Datasheet Preview Page 3

Datasheet Details

Part number:

PL123-05N

Manufacturer:

Micrel

File Size:

344.89 KB

Description:

Low skew fanout buffer.
