PL102-10

Low Skew Output Buffer

PL102-10 General Description

The PL102-10 is a high performance, low skew, low jitter zero delay buffer designed to distribute high speed clocks and is available in 8-pin SOP or 6-pin SOT23 package. It has two outputs that are synchronized with the input. The synchronization is established via CLKOUT feed back to the input of t.

PL102-10 Datasheet (250.40 KB)

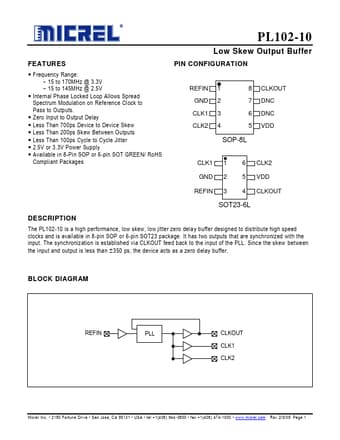

Preview of PL102-10 PDF

Datasheet Details

Part number:

PL102-10

Manufacturer:

Micrel

File Size:

250.40 KB

Description:

Low skew output buffer.
FE AT UR E S
* Frequency Range:

* 15 to 170MHz @ 3.3V

* 15 to 145MHz @ 2.5V
* Internal Phase Locked Loop Allows Spread Spectru.
