PL123-09N, PL123-05N, Low Skew Fanout Buffer

FE AT UR E S * Output fanout buffer for DC to 134MHz * Output Options: o 1:5 output fanout with PL123-05 o 1:9 output fanout with PL123-09 The PL123-05N and PL123-09N are a low-cost fanout buffers for distributing high-speed clocks with low output to output skew and preserving low noise p.

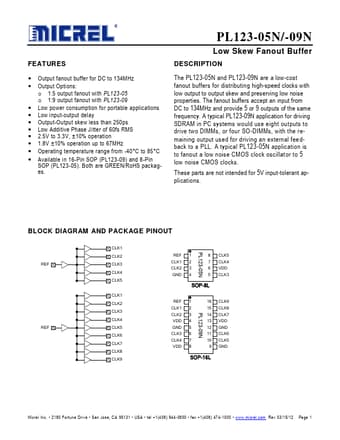

datasheet Preview Page 1 from Datasheet4u.com

PL123-05N-Micrel.pdf

PL123-09N Datasheet Preview — This datasheet PDF includes multiple part numbers: PL123-09N, PL123-05N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PL123-09N, PL123-05N

Manufacturer:

Micrel

File Size:

344.89 KB

Description:

Low Skew Fanout Buffer

Note:

This datasheet PDF includes multiple part numbers: PL123-09N, PL123-05N.
Please refer to the document for exact specifications by model.

Applications

* Low input-output delay
* Output-Output skew less than 250ps
* Low Additive Phase Jitter of 60fs RMS
* 2.5V to 3.3V, ±10% operation
* 1.8V ±10% operation up to 67MHz
* Operating temperature range from -40°C to 85°C
* Available in 16-Pin SOP (PL123-09) and 8-Pin SOP (PL12
