SY10E150

6-BIT D LATCH

SY10E150 Features

* s 700ps max. propagation delay s Extended 100E VEE range of

* 4.2V to

* 5.5V s Differential outputs s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100E150 s Available in 28-pin PLCC package

SY10E150 General Description

The SY10/100E150 are 6-bit D latches with differential outputs designed for use in new, high- performance ECL systems. When both Latch Enables (LEN1, LEN2) are at a logic LOW, the latch is in the transparent mode and input data propagates through to the output. A logic HIGH on either LEN1 or LEN2 (o.

SY10E150 Datasheet (58.00 KB)

Preview of SY10E150 PDF

Datasheet Details

Part number:

SY10E150

Manufacturer:

Micrel Semiconductor

File Size:

58.00 KB

Description:

6-bit d latch.

📁 Related Datasheet

SY10E151 - 6-BIT D REGISTER (Micrel Semiconductor)
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS 6-BIT D REGISTER SY10E151 SY1S0YE10105E1151 SY100E151 FEATURES s 1100MHz toggle frequency s Extended 1.

SY10E154 - 5-BIT 2:1 MUX-LATCH (Micrel Semiconductor)
Micrel, Inc. 5-BIT 2:1 MUX-LATCH SY10E154 SY1S0YE10105E4154 SY100E154 FEATURES s 750ps max. LEN to output s Extended 100E VEE range of –4.2V to –5..

SY10E155 - 6-BIT 2:1 MUX-LATCH (Micrel Semiconductor)
NOT RECOMMENDED FOR NEW DESIGNS 6-BIT 2:1 MUX-LATCH SY10E155 SY100E155 FINAL FEATURES 750ps max. LEN to output Extended 100E VEE range of –4.2V to –.

SY10E156 - 3-BIT 4:1 MUX-LATCH (Micrel Semiconductor)
3-BIT 4:1 MUX-LATCH SY10E156 SY100E156 FEATURES s s s s s s s 900ps max. D to output Extended 100E VEE range of –4.2V to –5.5V 800ps max. LEN to out.

SY10E157 - QUAD 2:1 MULTIPLEXER (Micrel Semiconductor)
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS QUAD 2:1 MULTIPLEXER SY10E157 SY1S0YE10105E7157 SY100E157 FEATURES s Individual select controls s Exte.

SY10E158 - 5-BIT 2:1 MULTIPLEXER (Micrel Semiconductor)
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS 5-BIT 2:1 MULTIPLEXER SY10E158 SY1S0YE10105E8158 SY100E158 FEATURES s 550ps max. D to output s Extende.

SY10E101 - QUAD 4-INPUT OR/NOR GATE (Micrel Semiconductor)
Micrel, Inc. QUAD 4-INPUT OR/NOR GATE SY10E101 SY1S0YE10100E1101 SY100E101 FEATURES s 500ps max. propagation delay s Extended 100E VEE range of –4..

SY10E104 - QUINT 2-INPUT AND/NAND GATE (Micrel Semiconductor)
Micrel, Inc. QUINT 2-INPUT AND/NAND GATE SY10E104 SY1S0YE10100E4104 SY100E104 FEATURES s 600ps max. propagation delay s Extended 100E VEE range of .

TAGS

SY10E150 6-BIT LATCH Micrel Semiconductor

Image Gallery

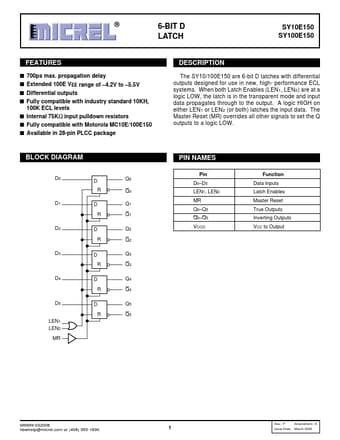

SY10E150 Datasheet Preview Page 2 SY10E150 Datasheet Preview Page 3
