SY10E155, SY100E155 Datasheet - Micrel Semiconductor

SY10E155 6-BIT 2:1 MUX-LATCH

The SY10/100E155 offer six 2:1 multiplexers followed by latches with single-ended outputs, designed for use in new, high-performance ECL systems. The two external latch-enable signals (LEN1 and LEN2) are gated through a logical OR operation before use as control for the six latches. When both LEN1 a.

SY10E155 Features

* 750ps max. LEN to output Extended 100E VEE range of

* 4.2V to

* 5.5V 700ps max. D to output Single-ended outputs Asynchronous Master Reset Dual latch-enables Fully compatible with industry standard 10KH, 100K ECL levels Internal 75KΩ input pulldown resistors Fully compatible with Motor

SY100E155_MicrelSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SY10E155, SY100E155. Please refer to the document for exact specifications by model.

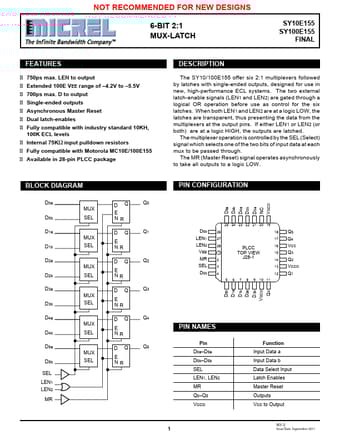

SY10E155 Datasheet Preview Page 2 SY10E155 Datasheet Preview Page 3

Datasheet Details

Part number:

SY10E155, SY100E155

Manufacturer:

Micrel Semiconductor

File Size:

529.26 KB

Description:

6-bit 2:1 mux-latch.

Note:

This datasheet PDF includes multiple part numbers: SY10E155, SY100E155.
Please refer to the document for exact specifications by model.
