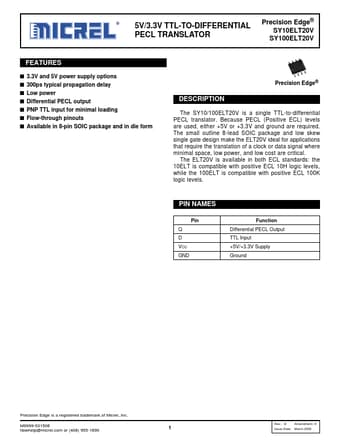

SY10ELT20V
FEATURES s 3.3V and 5V power supply options s 300ps typical propagation delay s Low power s Differential PECL output s PNP TTL input for minimal loading s Flow-through pinouts s Available in 8-pin SOIC package and in die form
Precision Edge®
DESCRIPTION
The SY10/100ELT20V is a single TTL-to-differential PECL translator. Because PECL (Positive ECL) levels are used, either +5V or +3.3V and ground are required. The small outline 8-lead SOIC package and low skew single gate design make the ELT20V ideal for applications that require the translation of a clock or data signal where minimal space, low power, and low cost are critical.
The ELT20V is available in both ECL standards: the 10ELT is patible with positive ECL 10H logic levels, while the 100ELT is patible with positive ECL 100K logic levels.
PIN NAMES
Pin Q D VCC GND
Function Differential PECL Output TTL Input +5V/+3.3V Supply Ground
Precision Edge is a registered trademark of Micrel, Inc.
M9999-031506 hbwhelp@micrel. or (408)...
