SY54011R Low Voltage 1.2V/1.8V CML 1:2 Fanout Buffer

The SY54011R is a fully differential, low voltage 1.2V/1.8V CML 1:2 fanout buffer. It is optimized to provide two identical output copies with less than 15ps of skew and less than 10pspp total jitter. The SY54011R can process clock signals as fast as 3.2GHz or data patterns up to 3.2Gbps. The differ.

SY54011R Features

* ∑ 1.2V/1.8V CML 1:2 fanout buffer ∑ Guaranteed AC performance over temperature and voltage:

* DC-to- > 3.2Gbps throughput

SY54011R Datasheet (541.38 KB)

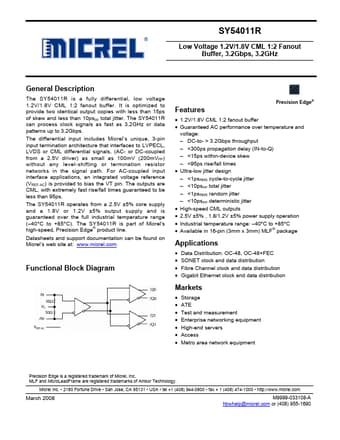

SY54011R Datasheet Preview — Preview of SY54011R PDF

Datasheet Details

Part number:

SY54011R

Manufacturer:

Micrel Semiconductor

File Size:

541.38 KB

Description:

Low voltage 1.2v/1.8v cml 1:2 fanout buffer.
