SY58051U Datasheet - Micrel Semiconductor

ULTRA-PRECISION CML AnyGate

SY58051U Features

* Precision Edge®

* Three matched-delay input pair provide any logic function: AND, NAND, OR, NOR

* Guaranteed AC performance over temperature and

* voltage:

* DC to > 10.7Gbps data rate throughput

* DC to > 7GHz clock fMAX

SY58051U General Description

The SY58051U is an ultra-fast, low jitter universal logic gate with a guaranteed maximum data or clock throughput of 10.7Gbps or 7GHz, respectively. This AnyGate® differential logic device will produce many logic functions of two Boolean variables, such as AND, NAND, OR, NOR, DELAY, or NEGATION. The.

SY58051U Datasheet (770.63 KB)

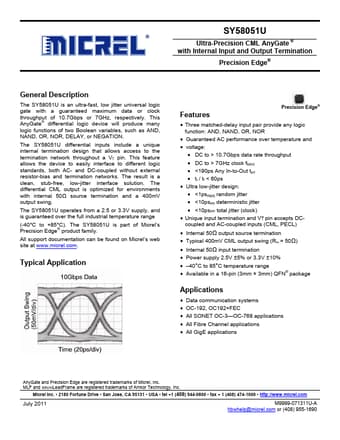

SY58051U Datasheet Preview — Preview of SY58051U PDF

Datasheet Details

Part number:

SY58051U

Manufacturer:

Micrel Semiconductor

File Size:

770.63 KB

Description:

Ultra-precision cml anygate.
