SY58020U Datasheet - Microchip

SY58020U 1:4 CML Fanout Buffer/Translator

The SY58020U is a 2.5V/3.3V precision, high-speed, fully differential 1:4 CML fanout buffer. Optimized to provide four identical output copies with less than 15 ps of skew and 27 fsRMS of typical additive phase jitter, the SY58020U can process clock signals as fast as 6 GHz. The differential input i.

SY58020U Features

* Precision 1:4, 400 mV CML Fanout Buffer

* Guaranteed AC Performance Over Temperature/Voltage:

* > 6 GHz fMAX Clock

* < 60 ps tr / tf Times

* < 250 ps tpd

* < 15 ps Max. Skew

* Low-jitter Performance:

* 27 fsRMS Typical Additive Phase

SY58020U-Microchip.pdf

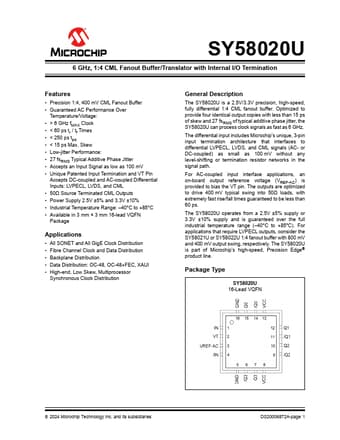

Preview of SY58020U PDF
SY58020U Datasheet Preview Page 2 SY58020U Datasheet Preview Page 3

Datasheet Details

Part number:

SY58020U

Manufacturer:

Microchip ↗

File Size:

1.49 MB

Description:

1:4 cml fanout buffer/translator.
