SY58024U

ULTRA-LOW JITTER DUAL 2 횞 2 CROSSPOINT SWITCH

SY58024U Features

* Guaranteed AC performance over temperature and voltage:

* >10.7Gbps data throughput

SY58024U General Description

The SY58024U is a 2.5V/3.3V precision, high-speed, fully differential dual CML crosspoint switch. The SY58024U is optimized to provide two identical output copies with less than 20ps of skew and ultra-low jitter. The SY58024U can process clock signals as fast as 6GHz or data patterns up to 10.7Gbps..

SY58024U Datasheet (143.24 KB)

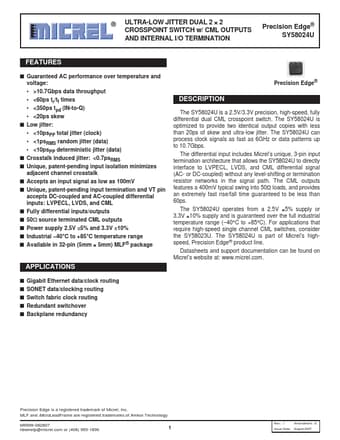

Preview of SY58024U PDF

Datasheet Details

Part number:

SY58024U

Manufacturer:

Micrel Semiconductor

File Size:

143.24 KB

Description:

Ultra-low jitter dual 2 횞 2 crosspoint switch.
Micrel, Inc. ULTRA-LOW JITTER DUAL 2 × 2 CROSSPOINT SWITCH w/ CML OUTPUTS AND INTERNAL I/O TERMINATION Precision Edge® Precision ESdY5g8e02®4U SY580.
