SY58022U

5.5GHz 1:4 FANOUT BUFFER/ TRANSLATOR

SY58022U Features

* Precision 1:4, 400mV LVPECL fanout buffer

* Guaranteed AC performance over temperature and voltage:

* > 5.5GHz fMAX clock

* < 80ps tr/tf times

* < 250ps (VIN ≥ 300mV) tpd

* < 15ps max. skew

* Low jitter performance:

* 60fs RMS phase jitter

SY58022U General Description

The SY58022U is a 2.5V/3.3V precision, high-speed, fully differential 1:4 LVPECL fanout buffer. Optimized to provide four identical output copies with less than 15ps of skew and less than 10psPP total jitter, the SY58022U can process clock signals as fast as 5.5GHz. The differential input includes M.

SY58022U Datasheet (315.67 KB)

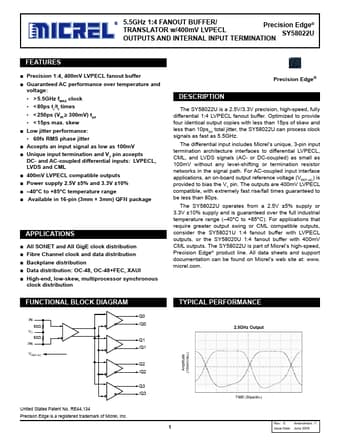

Preview of SY58022U PDF

Datasheet Details

Part number:

SY58022U

Manufacturer:

Micrel Semiconductor

File Size:

315.67 KB

Description:

5.5ghz 1:4 fanout buffer/ translator.
Micrel, Inc. 5.5GHz 1:4 FANOUT BUFFER/ TRANSLATOR w/400mV LVPECL PrecisPiroencisESioYdn5g8Ee0d2®g2eU® SY58022U OUTPUTS AND INTERNAL INPUT TERMINATI.
