SY58203A1

Single Stage Flyback And PFC Regulator

Silergy

SY58203A1 Features

* Integrated 700V MOSFET

* Primary side control eliminate to the opto-coupler.

* Valley turn-on of the primary MOSFET to achieve low switching losses

* 0.3V primary current sense reference voltage leads to a lower sense resistance thus a lower conduction loss.

SY58203A1 General Description

The SY58203A1 is a single stage Flyback and PFC regulator targeting at LED lighting applications. It integrates a 700V MOSFET to decrease physical volume. It is a primary side controller without applying any secondary feedback circuit for low cost, and drives the Flyback converter in the quasi-reso.

SY58203A1 Datasheet (718.95 KB)

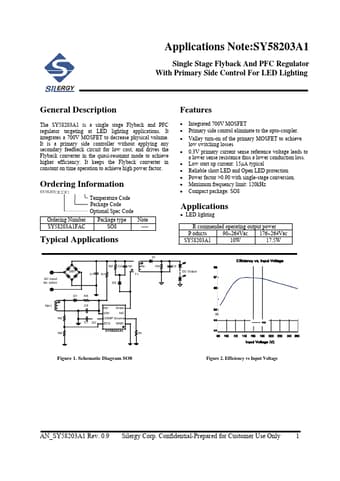

SY58203A1 Datasheet Preview — Preview of SY58203A1 PDF

Datasheet Details

Part number:

SY58203A1

Manufacturer:

Silergy

File Size:

718.95 KB

Description:

Single stage flyback and pfc regulator.
