SY58019U Datasheet - Micrel Semiconductor

SY58019U ULTRA-PRECISION DIFFERENTIAL 400mV LVPECL 2:1 MUX

The SY58019U is a 2.5V/3.3V precision, high-speed, 2:1 differential MUX capable of handling clocks up to 7GHz and data up to 10.7Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-couple.

SY58019U Features

* Guaranteed AC performance over temperature and voltage:

* DC to 10.7Gbps data throughput

* DC to > 7GHz fMAX (clock)

* < 240ps propagation delay

* < 70ps tr / tf times

* Ultra-low crosstalk-induced jitter: 0.7psRMS

* Ultra-low jitter design:

SY58019U_MicrelSemiconductor.pdf

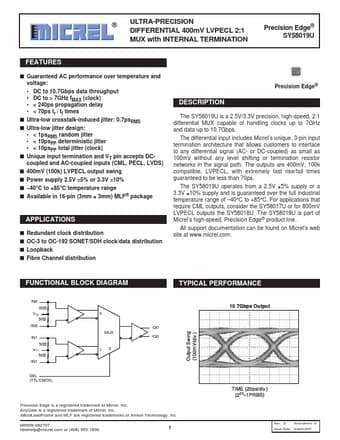

SY58019U Datasheet Preview — Preview of SY58019U PDF

Datasheet Details

Part number:

SY58019U

Manufacturer:

Micrel Semiconductor

File Size:

218.72 KB

Description:

Ultra-precision differential 400mv lvpecl 2:1 mux.
