SY58016L

DIFFERENTIAL CML LINE DRIVER/RECEIVER

SY58016L Features

* Accepts up to 10.7Gbps data

* < 45ps edge rate

* Gain ≥ 4V/V

* CML/PECL differential inputs

* CML outputs

* Internal 50Ω input termination

* Internal 50Ω output load resistors

* Available in die or 16-pin (3mm x 3mm) MLF package Appl

SY58016L General Description

The SY58016L is a high-speed, current mode logic (CML) differential receiver. It is ideal for interfacing with high frequency sources. It can be used as a Line Receiver, Line Driver, and Limiting Amplifier. The device can be operated from DC to 10Gbps. The input incorporates internal termination res.

SY58016L Datasheet (354.77 KB)

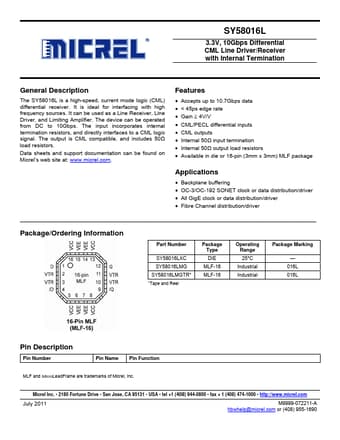

Preview of SY58016L PDF

Datasheet Details

Part number:

SY58016L

Manufacturer:

Micrel Semiconductor

File Size:

354.77 KB

Description:

Differential cml line driver/receiver.
