SY58017U

ULTRA-PRECISION DIFFERENTIAL CML 2:1 MUX

SY58017U Features

* Guaranteed AC performance over temperature and voltage:

* DC to > 10.7Gbps data throughput

* DC to > 7GHz fMAX (clock)

* < 240ps propagation delay

* < 60ps tr / tf times

* Ultra-low crosstalk-induced jitter: < 0.7psrms

* Ultra-low jitter design:

SY58017U General Description

The SY58017U is a 2.5V/3.3V precision, high-speed, 2:1 differential MUX capable of handling clocks up to 7GHz and data up to 10.7Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-couple.

SY58017U Datasheet (106.47 KB)

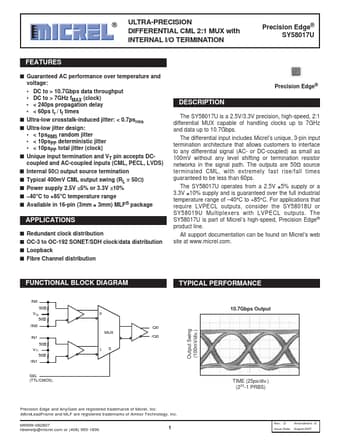

Preview of SY58017U PDF

Datasheet Details

Part number:

SY58017U

Manufacturer:

Micrel Semiconductor

File Size:

106.47 KB

Description:

Ultra-precision differential cml 2:1 mux.
