SY58020U 1:4 CML Fanout Buffer/Translator

Micrel Semiconductor

Description

SY58020U 6GHz, 1:4 CML Fanout Buffer/Translator with Internal I/O Termination General .
The SY58020U is a 2.

📥 Download Datasheet

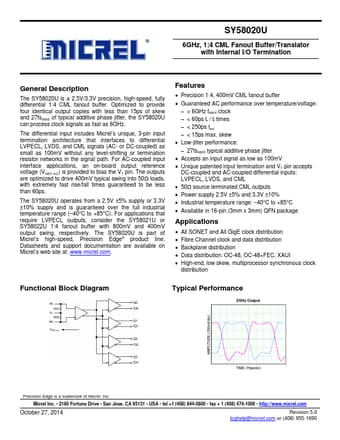

SY58020U Datasheet Preview — Preview of SY58020U PDF

Datasheet Specifications

Part number: SY58020U
Manufacturer: Micrel Semiconductor
File Size: 538.01 KB
Datasheet: SY58020U_MicrelSemiconductor.pdf
Description: 1:4 CML Fanout Buffer/Translator

Features

* Precision 1:4, 400mV CML fanout buffer
* Guaranteed AC performance over temperature/voltage:
* > 6GHz fMAX clock
* < 60ps tr / tf times
* < 250ps tpd
* < 15ps max. skew
* Low-jitter performance:
* 27fsRMS typical additive phase jitter

Applications

* an on-board output reference voltage (VREF-AC) is provided to bias the VT pin. The outputs are optimized to drive 400mV typical swing into 50Ω loads, with extremely fast rise/fall times guaranteed to be less than 60ps. The SY58020U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guarante
