SY55856U

2.5 GHz Differential Two-Channel Precision CML Delay Line

SY55856U Features

* Guaranteed AC Parameters over Temperature: - fMAX > 2.5 GHz - tr / tf < 120 ps - Propagation Delay < 384 ps

* Delay Either Clock or Data

* 50 ps Increments

* ±350ps total delay

* Source Terminated CML Outputs

* Fully Differential I/O

* Wide S

SY55856U General Description

The SY55856U is a 2.5 GHz, two-channel, fully differential CML (Current Mode Logic) delay line. The device is optimized to adjust the relative delay between two channels, such as clock and data, in 50 ps increments. Both inputs may be adjusted in either direction in seven increments of 50 ps, for a .

SY55856U Datasheet (2.16 MB)

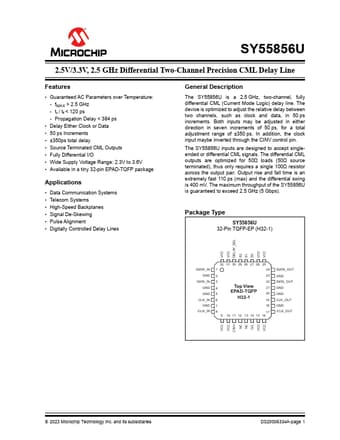

Preview of SY55856U PDF
