SY55853U Datasheet, Latch, Micrel Semiconductor

SY55853U Features

  • Latch s 2.5GHz min fmax s 2.3V to 5.7V power supply s Single bit latch s Stores or flows through 1 bit of data s Optimized to work with SuperLite™ family s Fully differential s Source termina

PDF File Details

Part number:

SY55853U

Manufacturer:

Micrel Semiconductor

File Size:

50.12kb

Download:

📄 Datasheet

Description:

D latch. The SY55853U is a latch. Its differential output will flow through the input while it's enable is high. The output will remain static

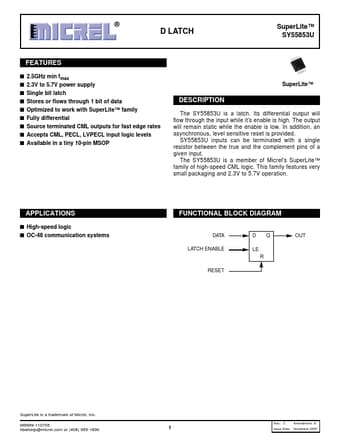

Datasheet Preview: SY55853U 📥 Download PDF (50.12kb)
Page 2 of SY55853U Page 3 of SY55853U

SY55853U Application

  • Applications s High-speed logic s OC-48 communication systems FUNCTIONAL BLOCK DIAGRAM DATA LATCH ENABLE RESET DQ LE R OUT SuperLite is a trade
