SY55856U

2.5V/3.3V 2.5GHz DIFFERENTIAL 2-CHANNEL PRECISION CML DELAY LINE

SY55856U Features

* Guaranteed AC parameters over temp and voltage

* > 2.5GHz fMAX

* < 384ps prop delay

* < 120ps tr/tf

* Delay either clock or data

* 50ps increments

* ± 350ps total delay

* Source terminated CML outputs

* Full differential I/O

* Wide supply voltage

SY55856U General Description

The SY55856U is a 2.5GHz, two-channel, fully differential CML (Current Mode Logic) delay line. The device is optimized to adjust the relative delay between two channels, such as clock and data, in 50ps increments. Both inputs may be adjusted in either direction in 7 increments of 50ps, for a total a.

SY55856U Datasheet (114.15 KB)

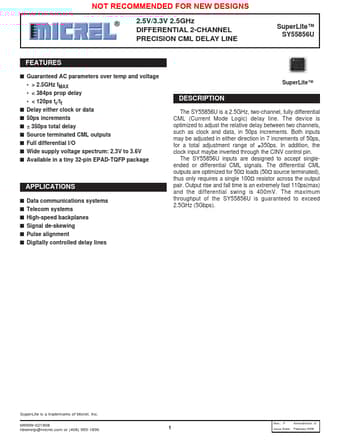

Preview of SY55856U PDF

Datasheet Details

Part number:

SY55856U

Manufacturer:

Micrel Semiconductor

File Size:

114.15 KB

Description:

2.5v/3.3v 2.5ghz differential 2-channel precision cml delay line.
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS 2.5V/3.3V 2.5GHz DIFFERENTIAL 2-CHANNEL PRECISION CML DELAY LINE SuperLite™ SuperSLYit5e5™856U SY55856U.
