SY55851A

3.0GHz CML AnyGate ANY LOGIC

SY55851A Features

* s Guaranteed AC parameters over temperature:

* fMAX > 3.0GHz (SY55851A)

* tr / tf < 100ps

* Propagation delay < 280ps s Guaranteed operation over

* 40°C to +85°C temperature range s Wide supply voltage range: 2.3V to 3.6V s Single IC provides 8 logic functions s 2:1 MU

SY55851A General Description

The SY55851 and SY55851A are highly flexible, universal logic gates capable of up to 3.0GHz operation (SY55851A). These AnyGate® differential logic devices will produce all possible logic functions of two Boolean variables. They can be configured as any of the following gates: AND, NAND, OR, NOR, XO.

SY55851A Datasheet (87.15 KB)

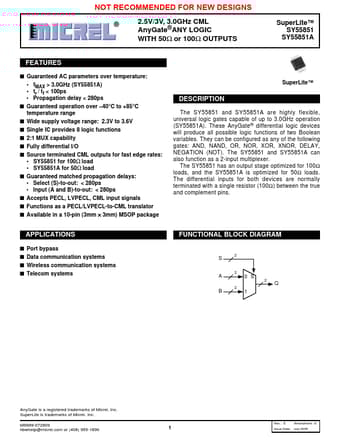

Preview of SY55851A PDF

Datasheet Details

Part number:

SY55851A

Manufacturer:

Micrel Semiconductor

File Size:

87.15 KB

Description:

3.0ghz cml anygate any logic.
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS 2.5V/3V, 3.0GHz CML AnyGate®ANY LOGIC WITH 50Ω or 100Ω OUTPUTS SuperLite™ SuperLSYSit5Ye55™855815A1 SY5.

📁 Related Datasheet

SY55851 - 3.0GHz CML AnyGate ANY LOGIC (Micrel Semiconductor)
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS 2.5V/3V, 3.0GHz CML AnyGate®ANY LOGIC WITH 50Ω or 100Ω OUTPUTS SuperLite™ SuperLSYSit5Ye55™855815A1 SY5.

SY55851A - 3.0GHz CML AnyGate Any Logic (Microchip)
SUPERLITE™ SY55851A 2.5V/3.3V, 3.0GHz CML AnyGate®Any Logic with 50 Outputs Features • Guaranteed AC Parameters Over Temperature: - fMAX > 3.0GHz -.
