SY55851 3.0GHz CML AnyGate ANY LOGIC

Micrel Semiconductor

Description

Micrel, Inc.NOT RECOMMENDED FOR NEW DESIGNS 2.5V/3V, 3.0GHz CML AnyGate®ANY LOGIC WITH 50Ω or 100Ω OUTPUTS SuperLite™ SuperLSYSit5Ye55™855815A1 SY5.
The SY55851 and SY55851A are highly flexible, universal logic gates capable of up to 3.

📥 Download Datasheet

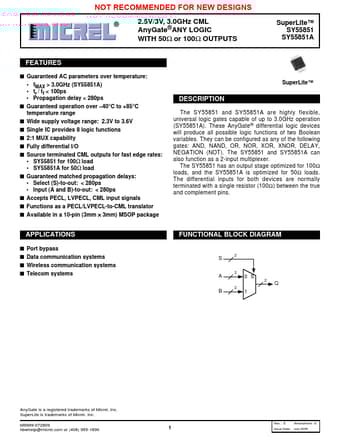

SY55851 Datasheet Preview — Preview of SY55851 PDF

Datasheet Specifications

Part number: SY55851
Manufacturer: Micrel Semiconductor
File Size: 87.15 KB
Datasheet: SY55851_MicrelSemiconductor.pdf
Description: 3.0GHz CML AnyGate ANY LOGIC

Features

* s Guaranteed AC parameters over temperature:
* fMAX > 3.0GHz (SY55851A)
* tr / tf < 100ps
* Propagation delay < 280ps s Guaranteed operation over
* 40°C to +85°C temperature range s Wide supply voltage range: 2.3V to 3.6V s Single IC provides 8 logic functions s 2:1 MU

Applications

* s Port bypass s Data communication systems s Wireless communication systems s Telecom systems FUNCTIONAL BLOCK DIAGRAM 2 S 2 A 0S 2 Q 2 B1 AnyGate is a registered trademarks of Micrel, Inc. SuperLite is trademarks of Micrel, Inc. M9999-072909 hbwhelp@micrel. com or (408) 955-1690 1 Rev. : E Amendm
