SY55854U

2 x 2 PROTECTION CROSSPOINT SWITCH

SY55854U Features

* very small packaging, high signal integrity, and flexible supply voltage operation. Datasheets and support documentation can be found on Micrel’s web site at: www.micrel.com. Functional Block Diagram Features SuperLite®

* Guaranteed fMAX >2.5GHz over temperature

* 2.3V to 5.7V power suppl

SY55854U General Description

The SY55854U is a fully differential, CML, 2 x 2-crosspoint switch. The non-blocking design allows any input to be connected to any output. Varying the state of the select inputs allows SY55854U to be used in backup, fault tolerant, protection, and backplane distribution applications. SY55854U input.

SY55854U Datasheet (213.99 KB)

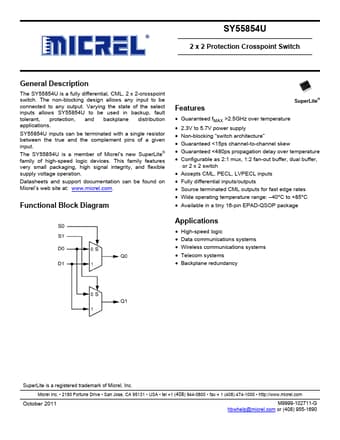

Preview of SY55854U PDF

Datasheet Details

Part number:

SY55854U

Manufacturer:

Micrel Semiconductor

File Size:

213.99 KB

Description:

2 x 2 protection crosspoint switch.
