SY55858U - DUAL 2 x 2 CML CROSSPOINT SWITCH

Micrel Semiconductor

The SY55858U by Micrel Semiconductor is a DUAL 2 x 2 CML CROSSPOINT SWITCH. Below is the official datasheet preview.

📥 Download Datasheet

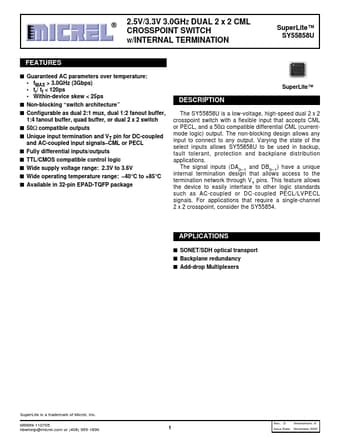

SY55858U DUAL 2 x 2 CML CROSSPOINT SWITCH by Micrel Semiconductor - Datasheet Preview — Official preview page of the **SY55858U** DUAL 2 x 2 CML CROSSPOINT SWITCH datasheet (Micrel Semiconductor).

Datasheet Details

Part number	SY55858U
Manufacturer	Micrel Semiconductor
File Size	72.10 KB
Description	DUAL 2 x 2 CML CROSSPOINT SWITCH
Datasheet	SY55858U_MicrelSemiconductor.pdf
Additional preview pages of the SY55858U datasheet.

SY55858U Product details

Description

SuperLite™ The SY55858U is a low-voltage, high-speed dual 2 x 2 crosspoint switch with a flexible input that accepts CML or PECL, and a 50Ω compatible differential CML (currentmode logic) output.The non-blocking design allows any input to connect to any output.Varying the state of the select inputs allows SY55858U to be used in backup, fault tolerant, protection and backplane distribution applications.The signal inputs (DA0 1 and DB0 1) have a unique internal termination des

Features

s Guaranteed AC parameters over temperature:.
fMAX > 3.0GHz (3Gbps).
tr/ tf < 120ps.
Within-device skew < 25ps s Non-blocking “switch architecture” s Configurable as dual 2:1 mux, dual 1:2 fanout buffer, 1:4 fanout buffer, quad buffer, or dual 2 x 2 switch s 50Ω compatible outputs s Unique input termination and VT pin for DC-coupled and AC-coupled input signals.
CML or PECL s Fully differential inputs/outputs s TTL/CMOS compatible control logic s Wide supply vo.
