SY58609U

CML 2:1 MUX

SY58609U Features

* Precision 400 mV CML 2:1 MUX

* Guaranteed AC Performance Over Temperature and Voltage: - DC-to >4.25 Gbps Throughput -

SY58609U General Description

The SY58609U is a 2.5/3.3V, high-speed, fully differential CML 2:1 MUX capable of processing clock signals up to 2.5 GHz and data patterns up to 4.25 Gbps. The SY58609U is optimized to provide a buffered output of the selected input with less than 20 ps of skew and less than 10pspp total jitter. The.

SY58609U Datasheet (3.10 MB)

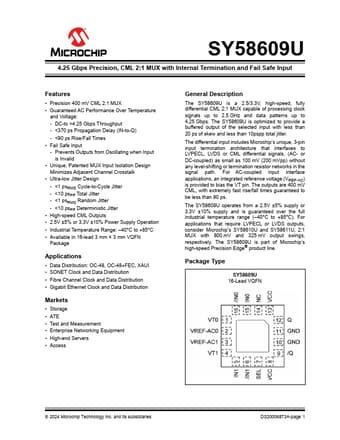

Preview of SY58609U PDF

Datasheet Details

Part number:

SY58609U

Manufacturer:

Microchip ↗

File Size:

3.10 MB

Description:

Cml 2:1 mux.
