SY58606U

1:2 CML Fanout Buffer

SY58606U Features

* Precision 1:2, 400mV CML fanout buffer

* Guaranteed AC performance over temperature and voltage:

* DC-to > 4.25Gbps throughput

SY58606U General Description

The SY58606U is a 2.5/3.3V, high-speed, fully differential 1:2 CML fanout buffer optimized to provide two identical output copies with less than 15ps of skew and 100fsRMS of typical additive phase jitter. The SY58606U can process clock signals as fast as 3GHz or data patterns up to 4.25Gbps. The dif.

SY58606U Datasheet (681.44 KB)

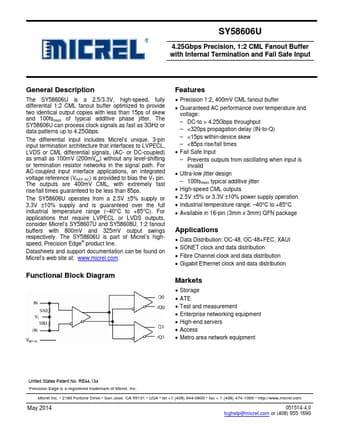

Preview of SY58606U PDF

Datasheet Details

Part number:

SY58606U

Manufacturer:

Micrel Semiconductor

File Size:

681.44 KB

Description:

1:2 cml fanout buffer.
