SY58601U Datasheet, Driver/receiver, Micrel Semiconductor

SY58601U Features

  • Driver/receiver
  • Guaranteed AC performance over temperature and voltage:
  • DC-to >5Gbps data rate throughput
  • DC-to >5GHz clock fMAX
  • <260ps in-to-out tpd

PDF File Details

Part number:

SY58601U

Manufacturer:

Micrel Semiconductor

File Size:

156.60kb

Download:

📄 Datasheet

Description:

Ultra-precision differential 800mv lvpecl line driver/receiver. The SY58601U is a 2.5V/3.3V precision, high-speed, differential receiver capable of handling clocks up to 5GHz and data streams up to

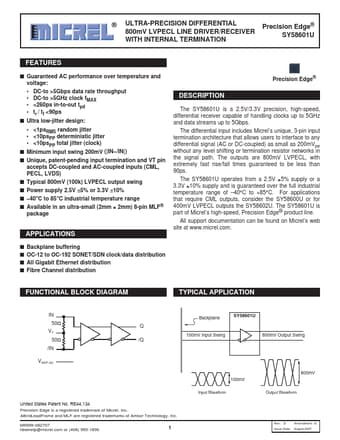

Datasheet Preview: SY58601U 📥 Download PDF (156.60kb)
Page 2 of SY58601U Page 3 of SY58601U

SY58601U Application

  • Applications Precision Edge® DESCRIPTION The SY58601U is a 2.5V/3.3V precision, high-speed, differential receiver capable of handling clocks up to
